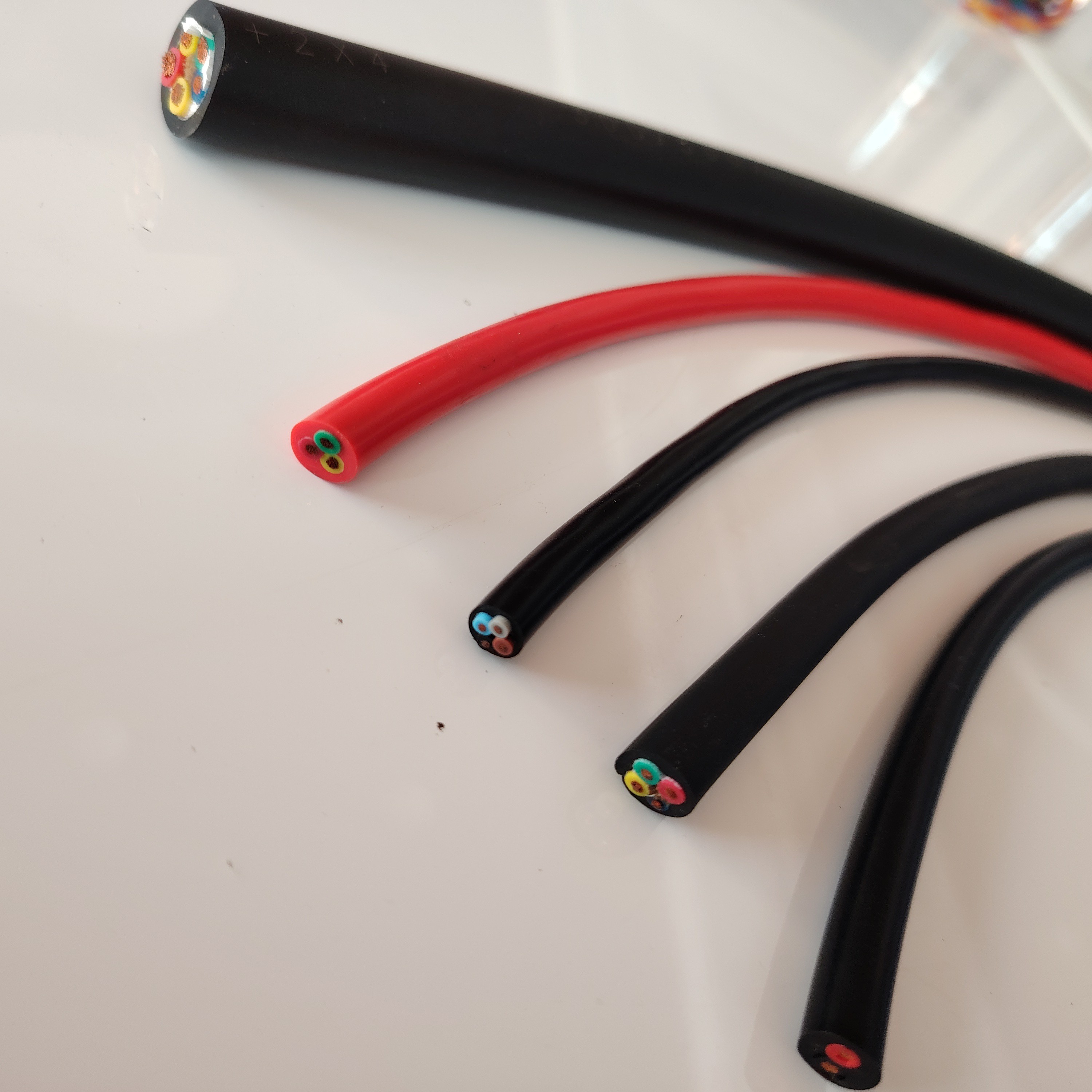

Manufacturer Direct industrial RVV Wire
Specification:
Conductor: stranded bare copper
Cores: 2 cores, 3 cores, 3+1 cores, 3+2 cores, 4 cores, 5 cores, 5+1 cores
PVC insulation, PVC sheath
Other details
1.Standard: ISO9001,CE, RoHS,CCC
2.Application: General purpose indoor and outdoor, electrical tools, washing machines and vacuum cleaners ,etc.

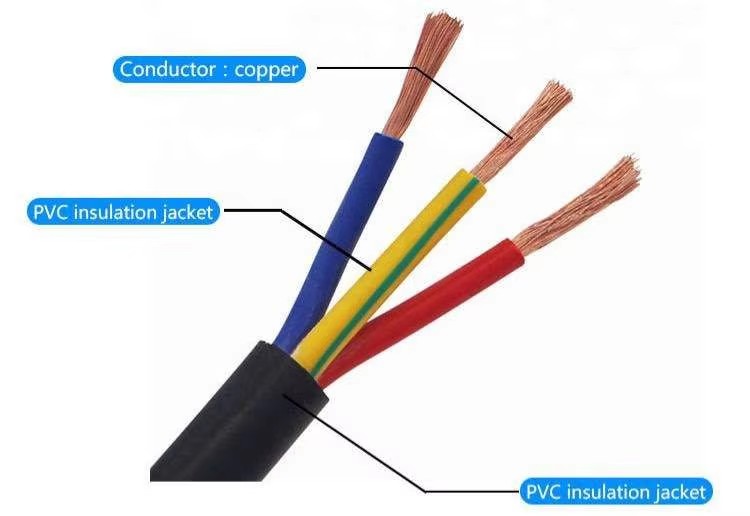

3.Construction: Flexible annealed copper conductor, PVC insulated and PVC sheathed
4.Voltage: 300/500 V
5.Core color: red, black, blue, white, brown,green/yellow brown
6.Sheath color: Black, white, orange, grey

- PRODUCT PARAMETERS -


Conductor Material
Copper
insulation Material
PVC
Jacket
PVC
Application
industrial
Type
power cable
Place of Origin
Shandong, China
Model Number
RVV
Brand Name
kehuan
Product name
Electrical Power Cable
Conductor
Tinned Copper
Color
Customer's Requirment
insulation
XLPE PE PVC
Certificate
ISO9001/ISO14001 /OHSAS18001/CCC
Size
1.5mm2 - 120mm2
Core
Single Core
Rated voltage
450/750V
Standard
IEC60502
Voltage
300-500V

Manufacturer Direct industrial RVV Wire

Manufacturer Direct industrial RVV Wire

Manufacturer Direct industrial RVV Wire

Manufacturer Direct industrial RVV Wire

RVV 300/300V
Nominal sectionmm2
Core Structure no./diamm
Max. outer dia(mm)
Conductor resistance at20 Ω/km
Min.insulation resistance at 70 Ω·km
2×0.5
16/0.20
6.0
39.0
0.012
2×0.5
16/0.20
3.6×6.0
39.0
0.012
2×0.75
24/0.20
6.4
26.
0.010
2×0.75
24/0.20
3.9×6.4
26.0
0.010
3×0.5
16/0.20
6.2
39.0
0.012
3×0.75
24/0.20
6.8
26.0
0.010
RVV 500/500V
Nominal sectionmm2
Core Structure no./diamm
Max. outer dia(mm)
Conductor resistance at20 Ω/km
Min.insulation resistance at 70 Ω·km
2×0.75
24/0.20
7.6
26.0
0.011
2×0.75
24/0.20
5.2×7.6
26.0
0.011
2×1.0
32/0.20
7.8
19.5
0.010
2×1.5
30/0.25
8.8
13.3
0.010
2×2.5
49/0.25
11.0
7.98
0.0090
2×0.75
24/0.20
8.0
26.0
0.011
3×1.0
32/0.20
8.4
19.5
0.010
3×1.5
30/0.25
9.6
13.3
0.010
3×2.5
49/0.25
11.5
7.98
0.0090
4×0.75
24/0.20
8.6
26.0
0.011
4×1.0
32/0.20
9.2
19.5
0.010
4×1.5
30/0.25
11.0
13.3
0.010
4×2.5
49/0.25
12.5
7.98
0.0090
5×0.75
24/0.20
9.4
26.0
0.011
5×1.0
32/0.20
11.0
19.5
0.010
5×1.5
30/0.25
12.0
13.3
0.010
5×2.5
49/0.25
14.0
7.98
0.0090
