Aluminum Power cable
4-core 16 mm² pure copper armored power cable with pvc insulation for industrial power stations & construction
WhatsApp ：+86 16756352222
Email ：admin@sdyyjszp.com

- PRODUCT PARAMETERS -

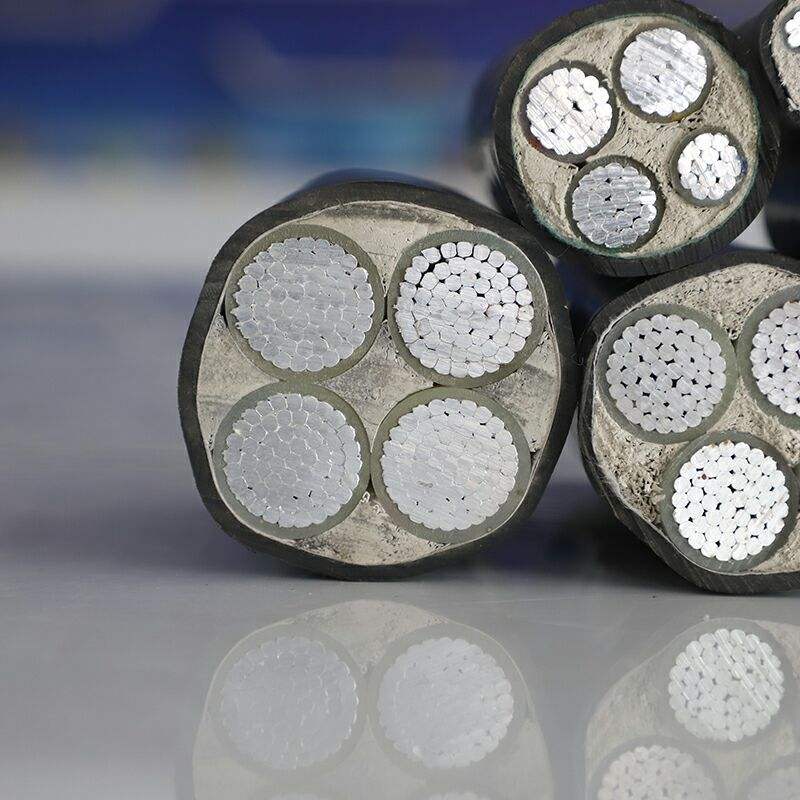

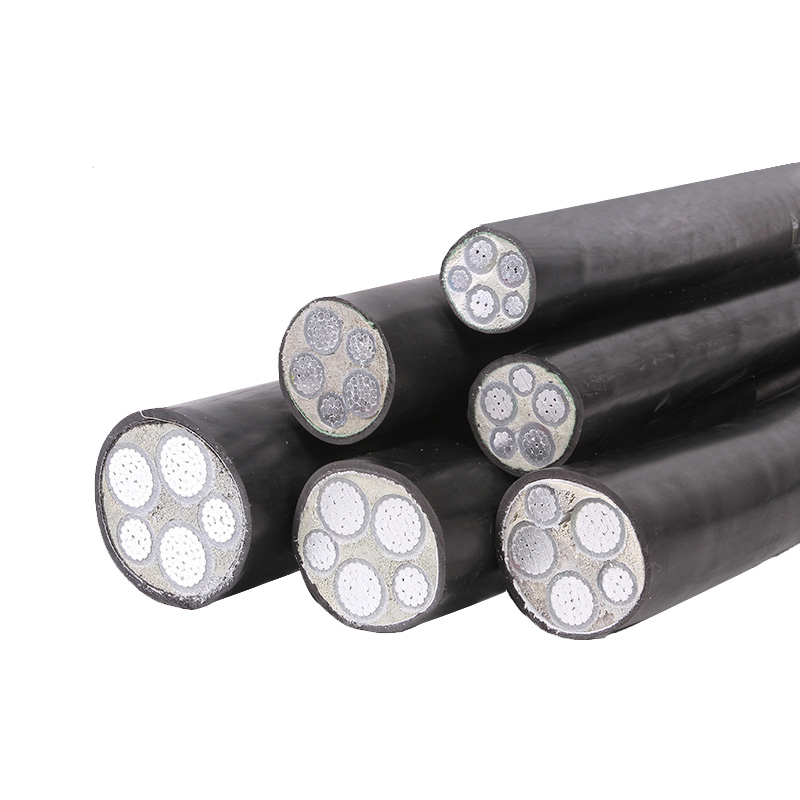

Aluminum Power cable

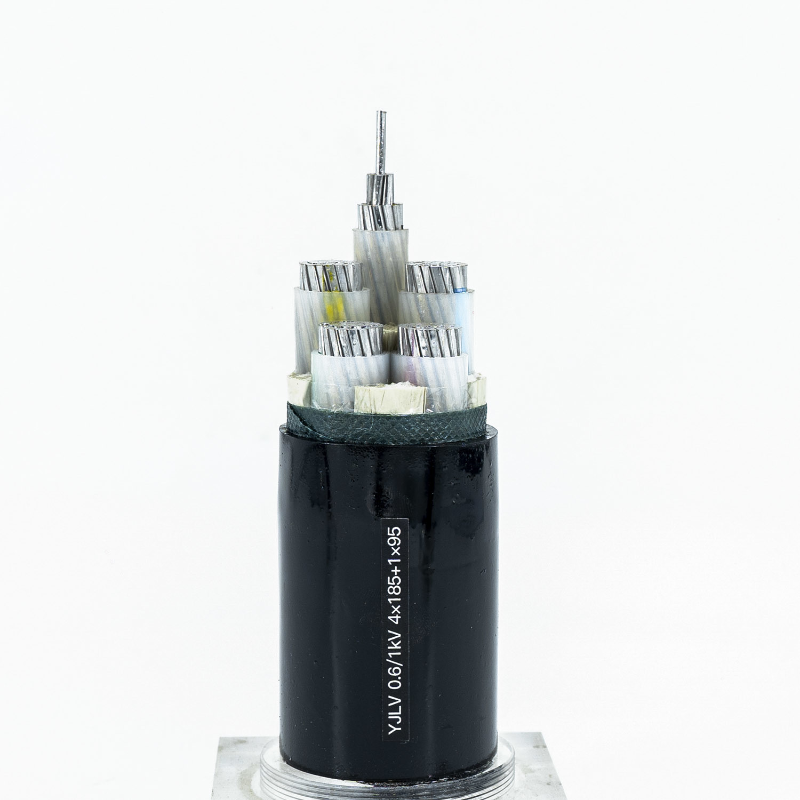

YJLV/YJLV22 Aluminum Core Power Cables

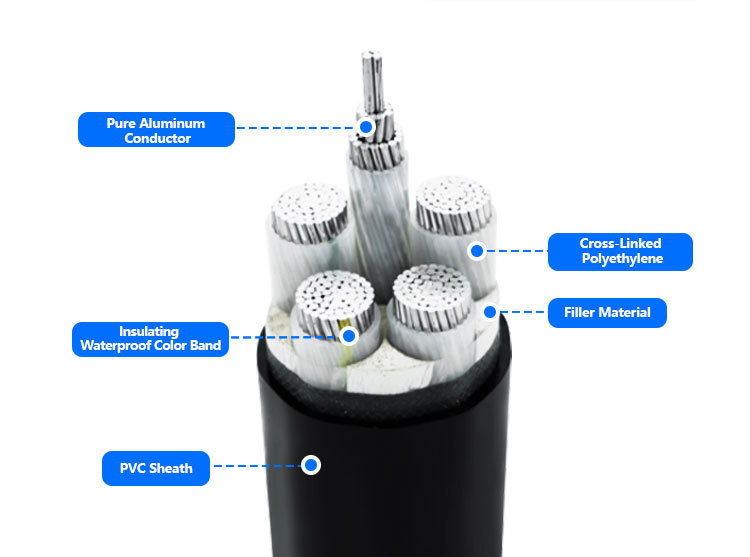

YJLV and YJLV22 are cost-effective aluminum-core power cables with XLPE insulation and PVC sheathing. YJLV suits general power transmission in industrial construction, residential areas, and power stations. YJLV22 adds double steel tape armoring, enhancing anti-corrosion, impact resistance for underground burial or harsh environments.
Both support 0.6/1kV to medium voltage, offer 90℃ operating temp, flame retardancy, and stable conductivity. Ideal for replacing copper cables to cut costs, widely used in power grids, factories, and outdoor projects.
Specifications
Size
(mm2)
Conductor Class
insulation
(mm)
Sheath
(mm)
Over. Dia.
(mm)
Net Weight
(kg/km)
Resistance
(Ω/km)
4 x 1.5
1
0.7
1.8
17.0
148
12.1
4 x 2.5
1
0.7
1.8
18.0
197
7.41
4 x 4
1
0.7
1.8
19.1
270
4.61
4 x 6
1
0.7
1.8
20.3
367
3.08
4 x 10
2
0.7
1.8
22.3
559
1.83
4 x 16
2
0.7
1.8
24.5
820
1.15
4 x 25
2
0.9
1.8
27.5
1179
0.727
4 x 35
2
0.9
1.9
29.5
1563
0.524
4 x 50
2
1.0
2.0
32.9
2078
0.387
4 x 70
2
1.1
2.2
36.7
2934
0.268
4 x 95
2
1.1
2.3
40.5
3965
0.193
4 x 120
2
1.2
2.4
45.3
49755
0.153
4 x 150
2
1.4
2.6
50.0
5124
0.124
4 x 185
2
1.6
2.8
54.2
7854
0.0991
4 x 240
2
1.7
3.0
60.4
9987
0.0754
4 x 300
2
1.8
3.1
65.7
12365
0.0601
4 x 400
2
2.0
3.2
74.2
15996
0.0470
Product Performance

Aluminum Power cable


1.High Conductivity & Energy Efficiency

* Premium aluminum core delivers outstanding electrical conductivity, ensuring smooth power flow.
* Lower resistivity effectively reduces energy loss during transmission, boosting overall operational efficiency.

2.Durable & Reliable Construction

* Minimal insulation eccentricity and uniform thickness guarantee consistent insulation strength.
* Excellent resistance to current breakdown extends service life and ensures long-term stable performance.

3.Advanced Safety Performance

* Thickened flame-retardant sheath inhibits fire spread, enhancing safety in electrical systems.
* Stable current output maintains reliable operation even under fluctuating load conditions.

4.Flexible & Heavy-Duty Design

* Balanced high strength and flexibility allows bending without compromising performance.
* Superior current-carrying capacity meets the demands of heavy-duty industrial and commercial applications.
These exceptional attributes make YJLV/YJLV22 aluminum-core cables a dependable solution for rigorous electrical installation scenarios.
