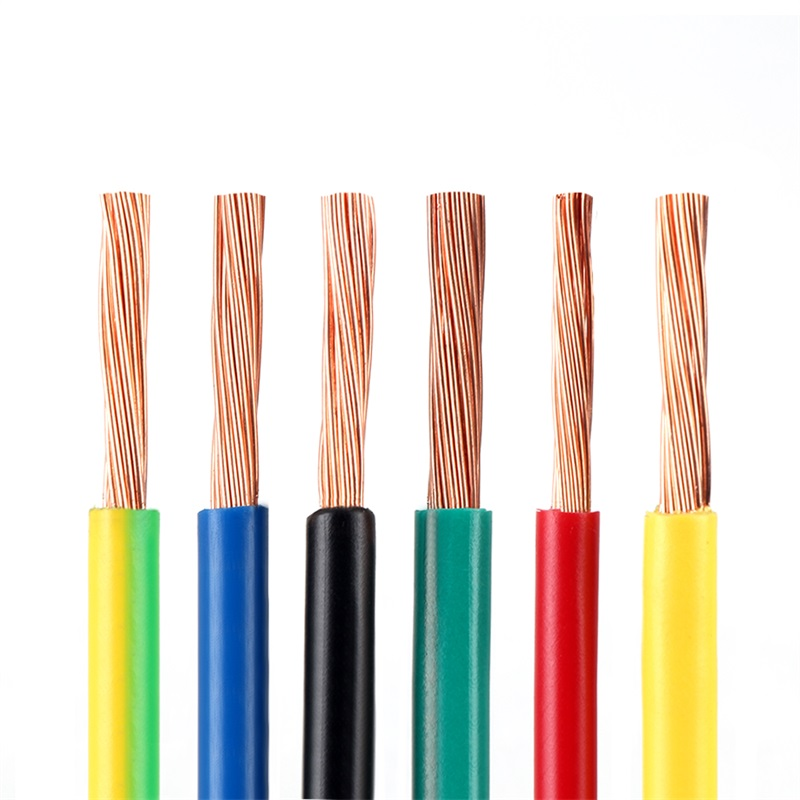

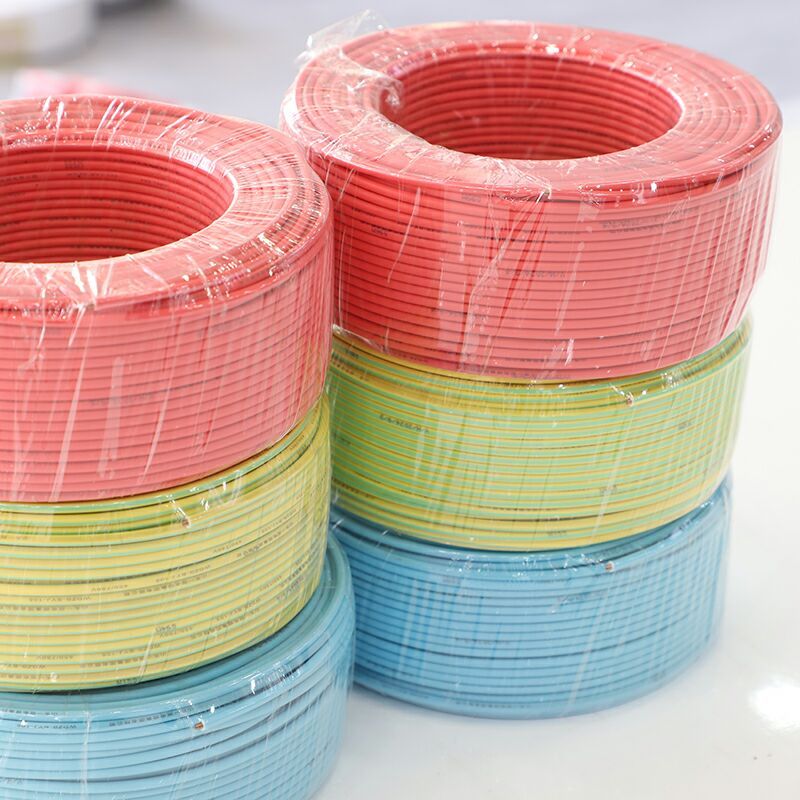

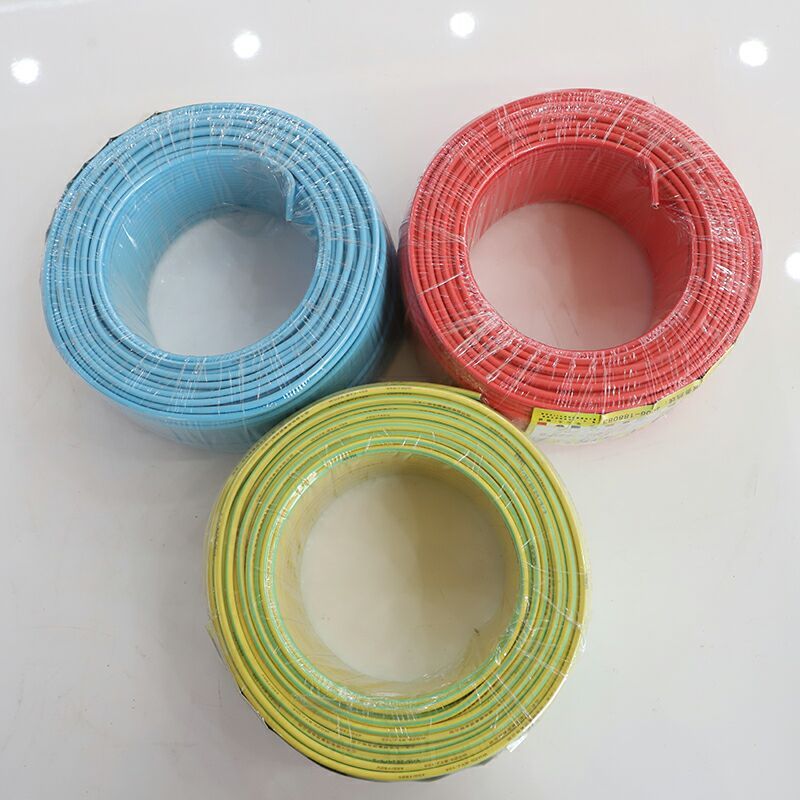

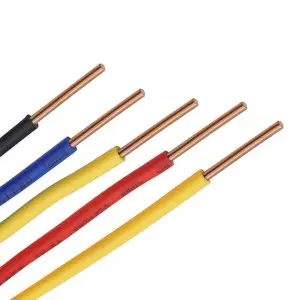

BV BVR Copper Core PVC insulated Electrical Wire

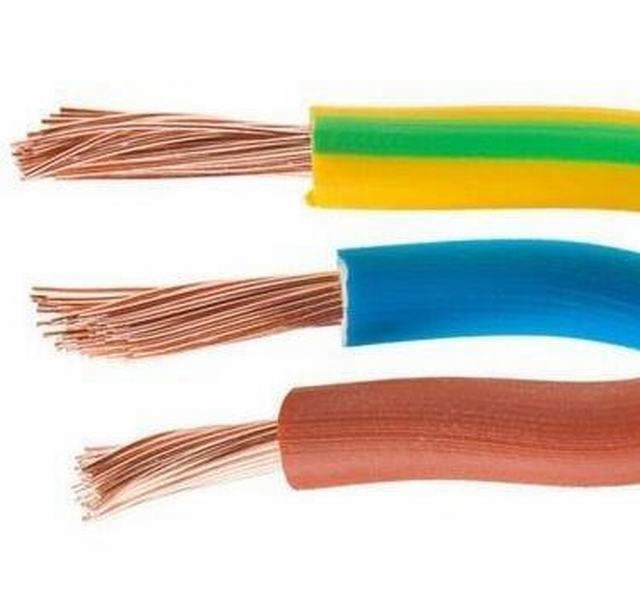

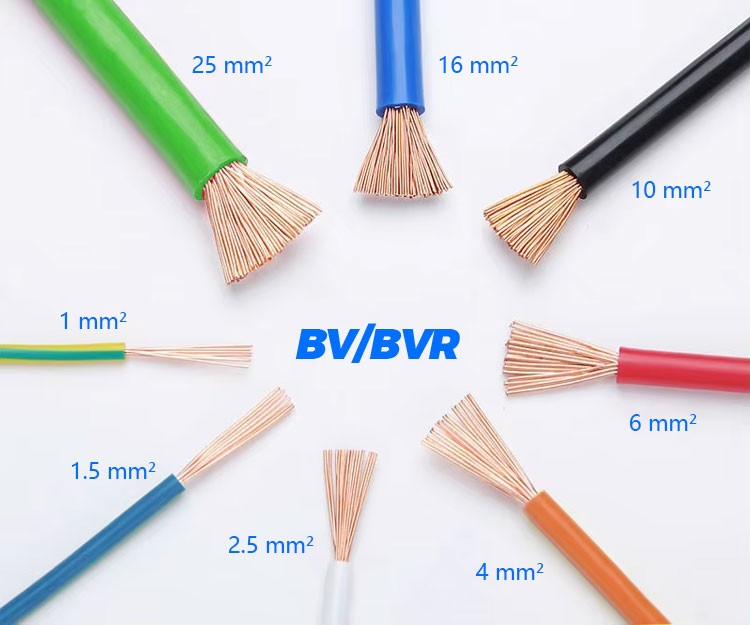

Structural Composition: BV/BVR wires consist of high-purity copper conductors (solid for BV, stranded for BVR) with durable PVC insulation. The copper ensures excellent conductivity, while the flame-retardant PVC provides safe insulation. BV offers rigidity for fixed wiring, while BVR's flexible strands suit complex installations. Both types meet international electrical standards for reliable performance.
WhatsApp ：+86 16756352222
Email ：admin@sdyyjszp.com

- PRODUCT PARAMETERS -


BV BVR Copper Core PVC insulated Electrical Wire

BV BVR Copper Core PVC insulated Electrical Wire

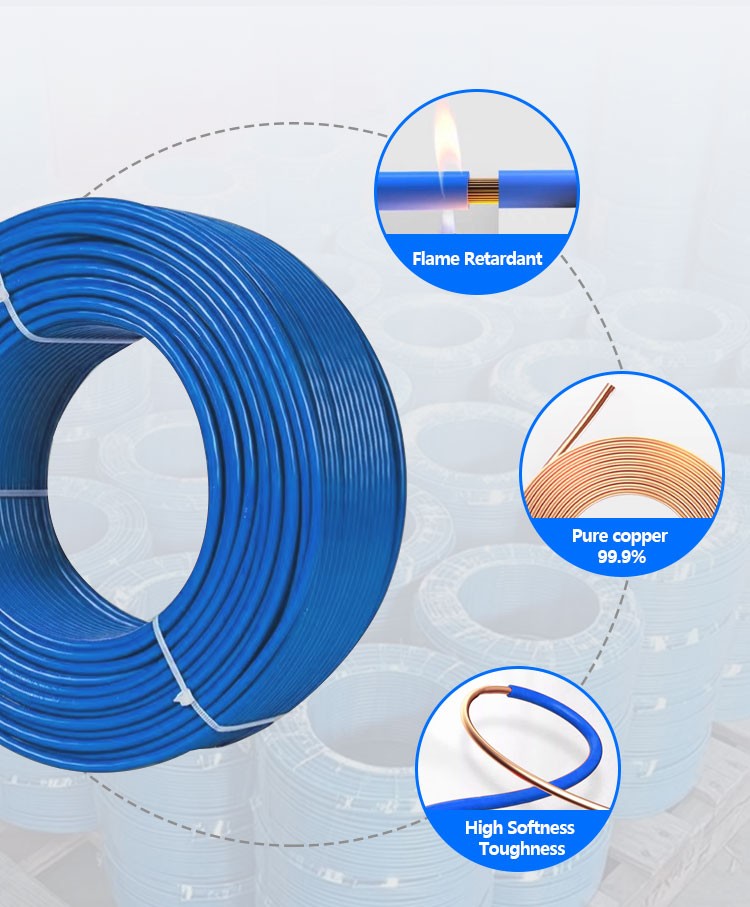

This product features 99.9% pure copper conductors for optimal conductivity, paired with flame-retardant insulation for enhanced safety. The high-softness design ensures easy installation, while maintaining exceptional toughness for long-term durability in demanding environments.Key Advantages:*Superior current transmission (99.9% copper purity)

*Self-extinguishing insulation (IEC 60332 compliant) *Flexible yet abrasion-resistant construction *Reliable performance in high-temperature applications
Specifications

BV BVR Copper Core PVC insulated Electrical Wire

BV 300/500V

Nominal section（m㎡）
Number /diameter of core
Average dia.（mm）
Reference weight（kg/km）
Conductor resistance at 20℃（Ω/km）
0.5
1/0.80
1.9-2.3
8.5
36.0
0.75（A）
1/0.97
2.1-2.5
11.1
24.5
0.75(B)
7/0.37
2.2-2.7
12.0
24.5
1.0(A)
1/1.13
2.2-2.7
13.9
18.1
1.0(B)
7/0.43
2.3-2.9
15.0
18.1
BVR 450/750V


Nominal section（m㎡）
Number/diameter of core（mm）
Average dia（mm)
Referance weight(kg/km)
Conductor resistance at 20℃（Ω/km）
2.5
19/0.41
4.2
34.7
7.41
4
19/0.52
4.8
51.4
4.61
6
19/0.64
5.6
73.6
3.08
10
49/0.52
7.6
129
1.83
16
49/0.58
8.8
186
1.91
25
98/0.58
11.0
306
1.20
35
133/0.58
12.5
403
0.868
50
133/0.58
14.5
553
0.641
70
189/0.68
16.5
764
0.443
